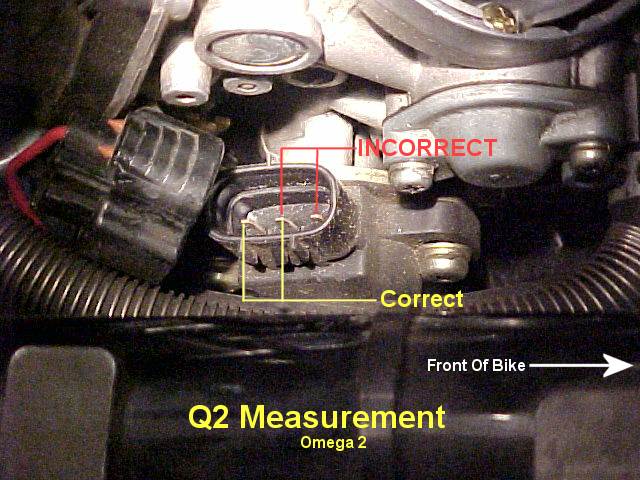

Measuring Ω2 is done the same way as Ω1 except that you want to measure the the center connection and the one furthest to the rear of the bike. This reading should be measured at WOT (Wide Open Throttle).
Calculating the Correct Setting Ω2 at WOT should be 76% of Ω1 according to the service manual specifications. To calculate this you would multiply the value of Ω1 by 0.76 and the result is what Ω2 should be at WOT. In my case my bike was out of factory specs. With a 5.12Ω on Ω1 my settings for Ω2 should be 3.89. Rather than the factory spec 76% mine was set to 82%. I'm not going to change mine but I'll get to that later on. Adjusting TPS Values |
