TPS Adjustment:

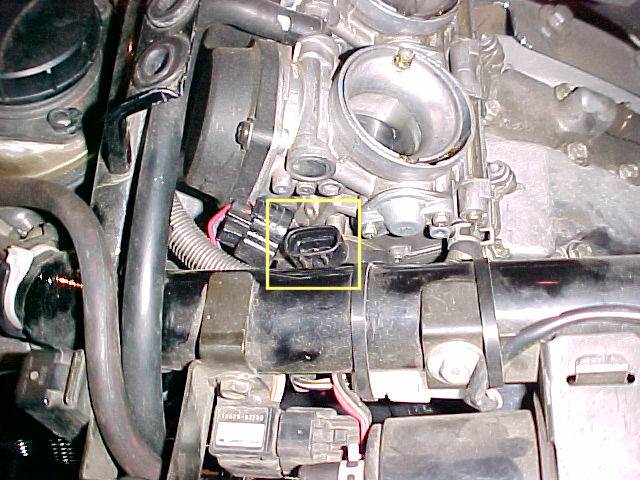

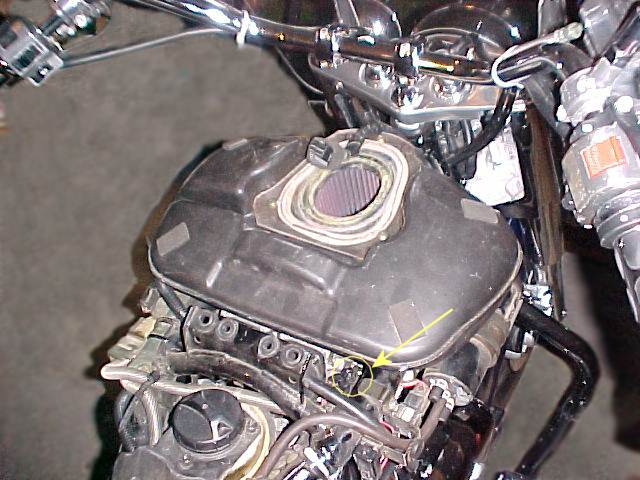

The throttle position sensor is located on the right side of the carbs with an electrical cap with three wires. You can click on any of the smaller images to enlarge and get a better idea of where it is and what it looks like.

I think you might be able to get away with just removing the right side tank cover, I went ahead and removed the entire upper cover assembly because I wanted to check a couple things while I had the bike apart.

The factory specifications according to the service manual says that the proper setting is when the resistance of Ω2 is 76% of Ω1. You will need a volt/ohmeter to test and adjust this setting.
