Electric Problem Page 2


Click To Enlarge

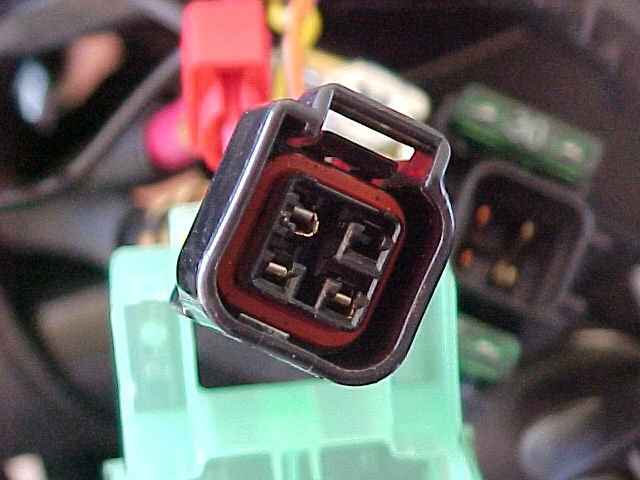

This single wire and 1/8" connector was not making good contact, apparently, and generated enough heat to melt the surrounding plastic connector and create an electrical bridge, thus shutting down the entire power system

In Figure 4 you can see the electrical connectors that plug into the starter relay. Again the single red wire is the wire to be concerned about. You will notice that the electrical connection on one plug is obviously damaged.


Click To Enlarge
After discovering this problem it became apparent that to make a reliable fix that we would have to bypass this entire plug system and still keep the same 30 amp fuse protection. This can be accomplished with a suitable fuse holder and wire loop.

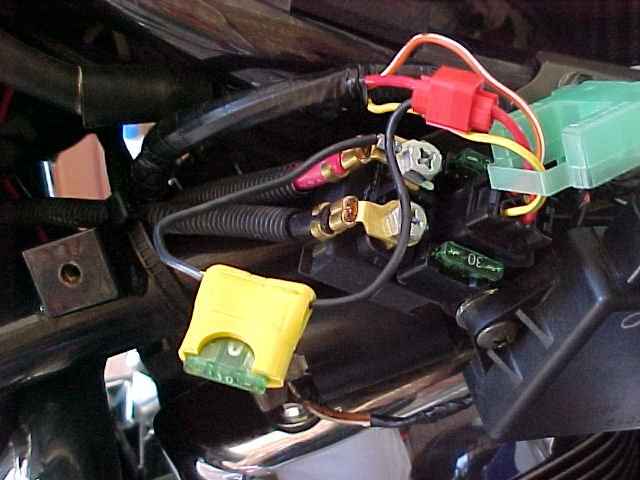

First we tapped off the main power feed from the battery where it connects to the starter relay by soldering a large enough connector to fit under the bolt holding the hot lead to the starter relay (Figure 5). The using an insulated power tap we spliced into the red main circuit wire to create a new connection for the main electrical feed.


Click To Enlarge

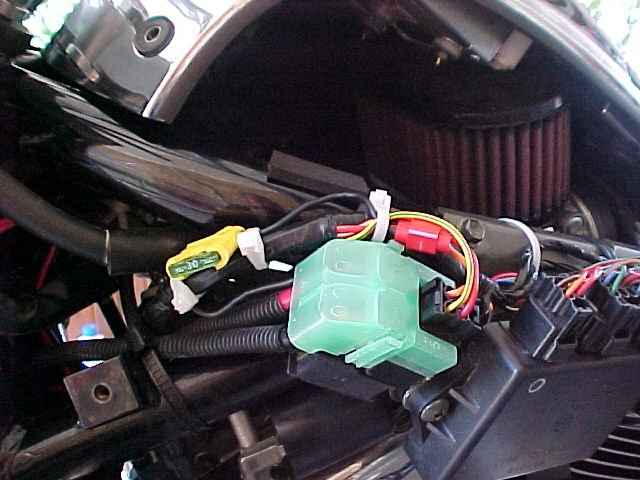

Figure 6 shows the final installation with the green cover back in place on the starter relay. Once The new fuse and wire is in place you can use some plastic tie wraps to secure the assembly to the existing wire harness. By using the same type of blade 30amp fuse in the new wire connection this allows you to use the spare 30amp fuse that is located under the green starter relay cover if you should happen to blow this fuse while out on the road.
