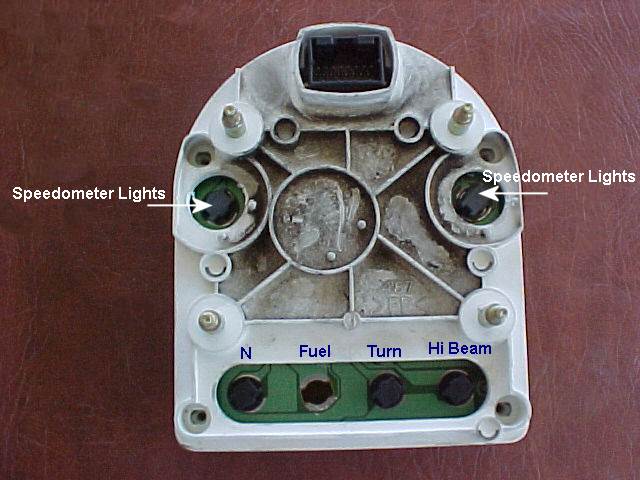

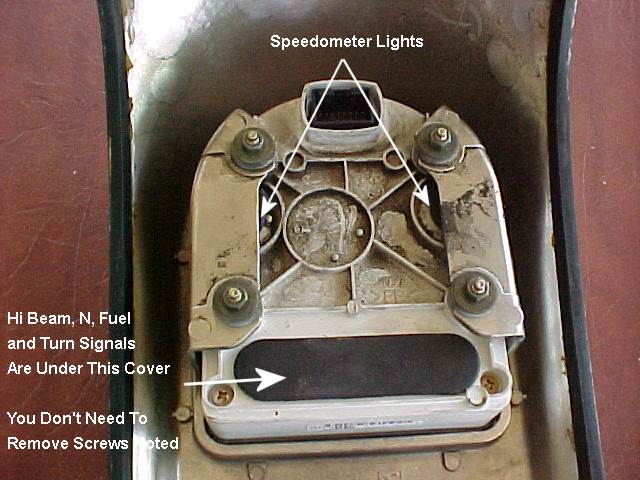

If you are replacing the Neutral, Turn, Fuel or High Beam Indicator lights then you only need to remove the rubber protector as depicted in the photograph at right. If you are replacing a speedometer light then you need to remove the 4 nuts shown in the picture so that you can get to the rubber caps and get to the bulbs.

If you are replacing the speedometer lights you need to remove the 4 nuts holding the cluster in the console and remove it. Remove the rubber protector of the errant light (remember your now looking at it backwards) and gently twist out the plastic light holder.


Once removed the bulb looks something like what you see at right. The bulb will remove from the socket even though it doesn't really want too. It will but it is a little stubborn sometimes.
